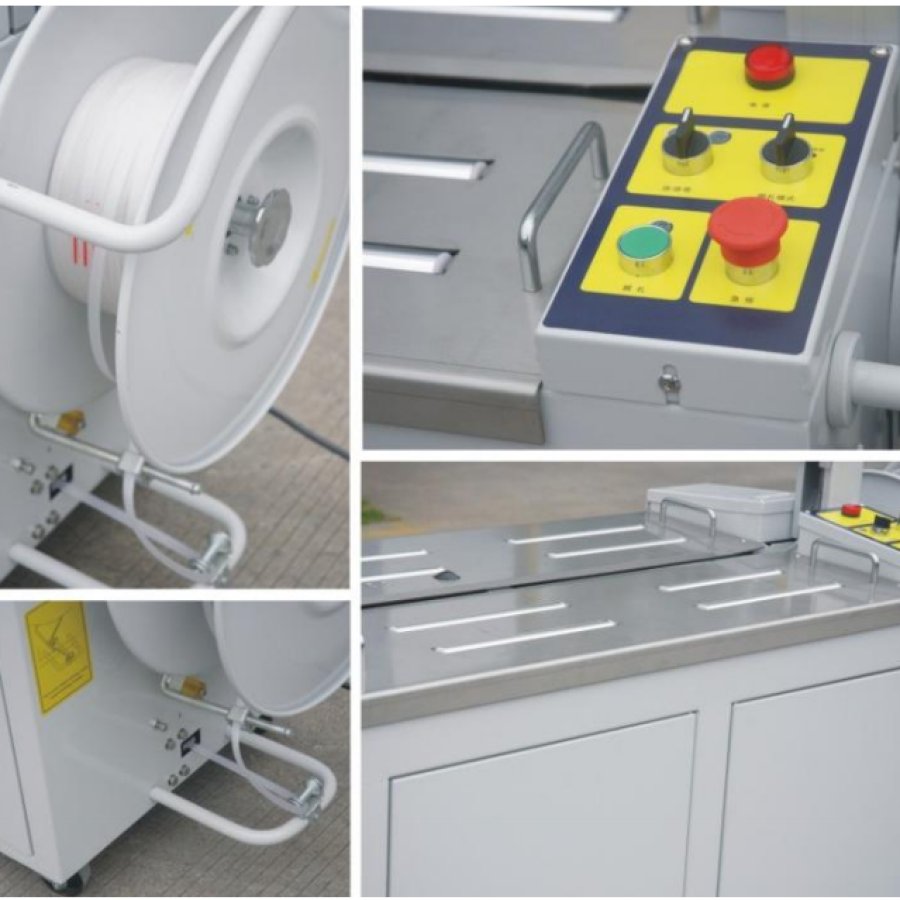

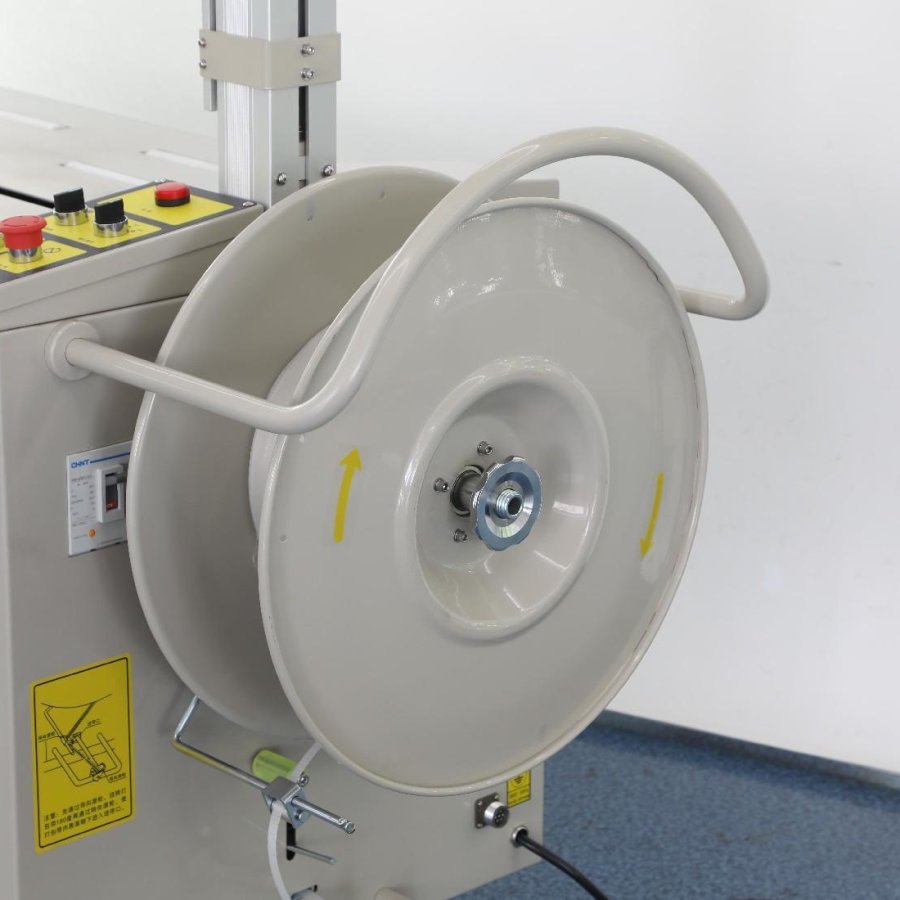

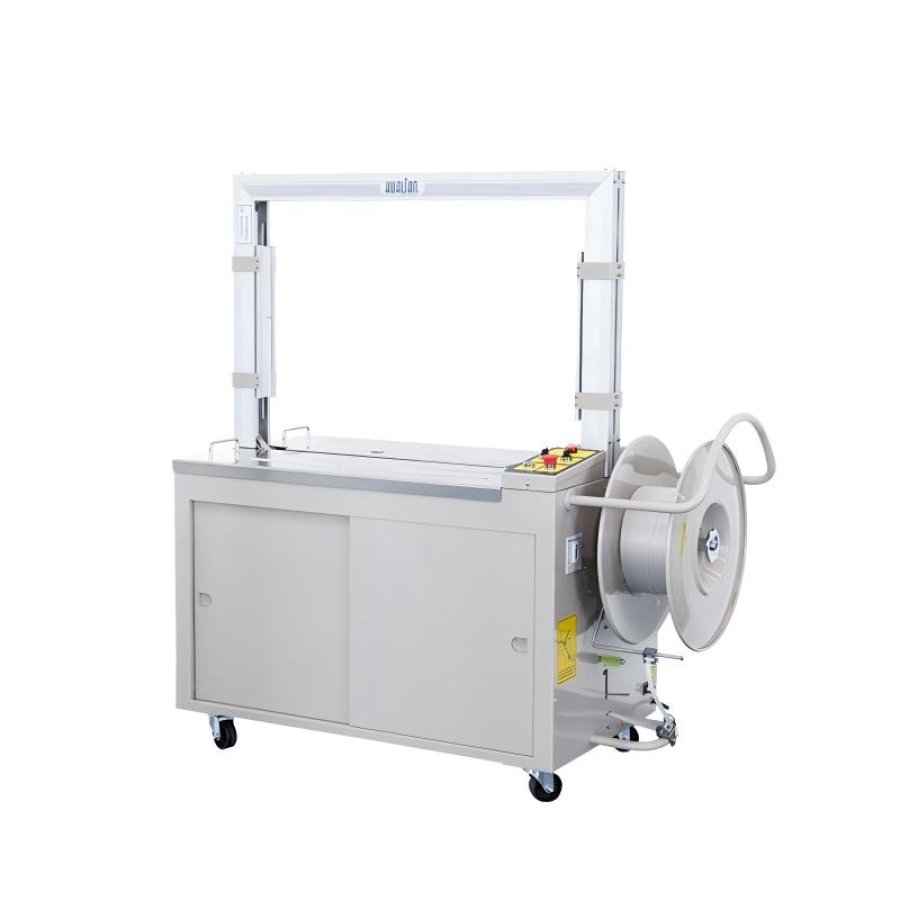

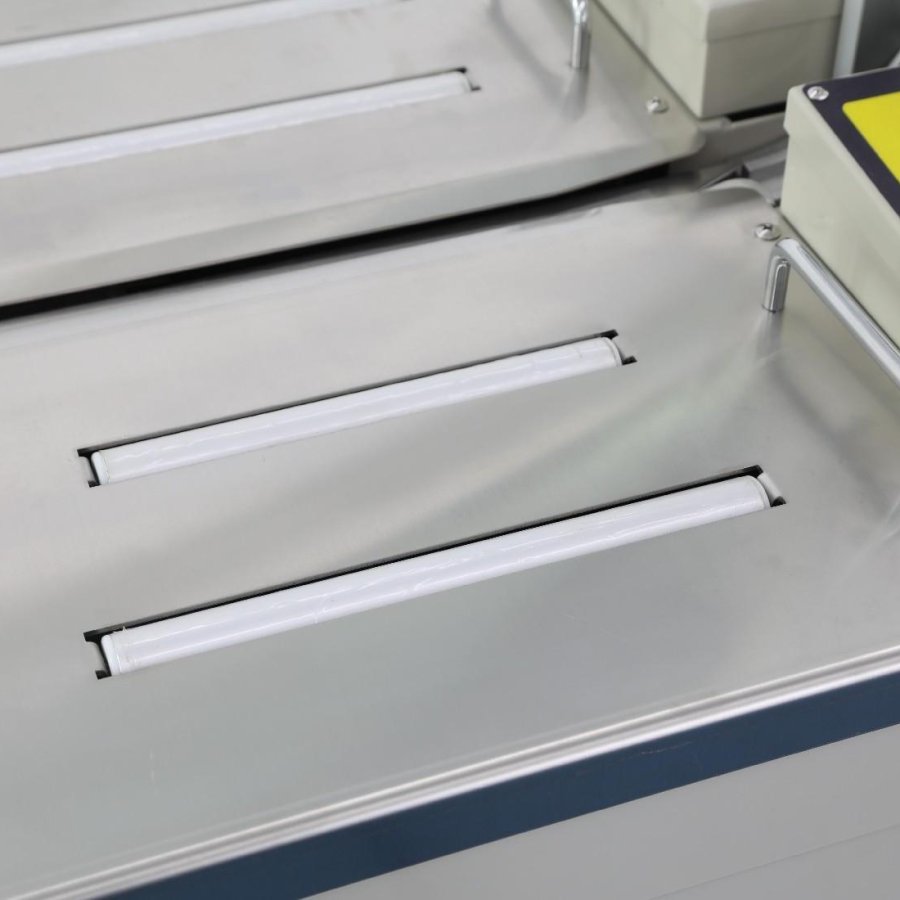

KZ series high-table automatic strapping machineadopt film, durable, efficient KZ mechanism as main body, human-machine interface, PLC and fully digital manipulation to ensure easy size changeover and stable running.
Due to special design of strap feeding and withdrawal track, more straps are applicable and packing cost is lowered greatly,Oil-free maintenance, firm strapping, high speed and long use life. It can be single-unit operation or equipped onto the production line.
KZ/D series is suitable for light objects.
Model | KZ-8060/D |
Machine dimension | L1400×W620×H1470mm |
Strapping speed | 2.5seconds/cycle (Max) |
Net weight | 190kg |
Max. strapping size | 700*600mm / 800*500mm |
Power | 1000W |
Strapping force | 25-700(adjustable) |
Strap used | Plastic strap,width:9-15,Thickness:0.5-1.1 |
Power supply | 380V/50Hz 220V/60Hz 3 Phase |
Height of table | 750mm |
Max. Conveyor load | 30kg |
