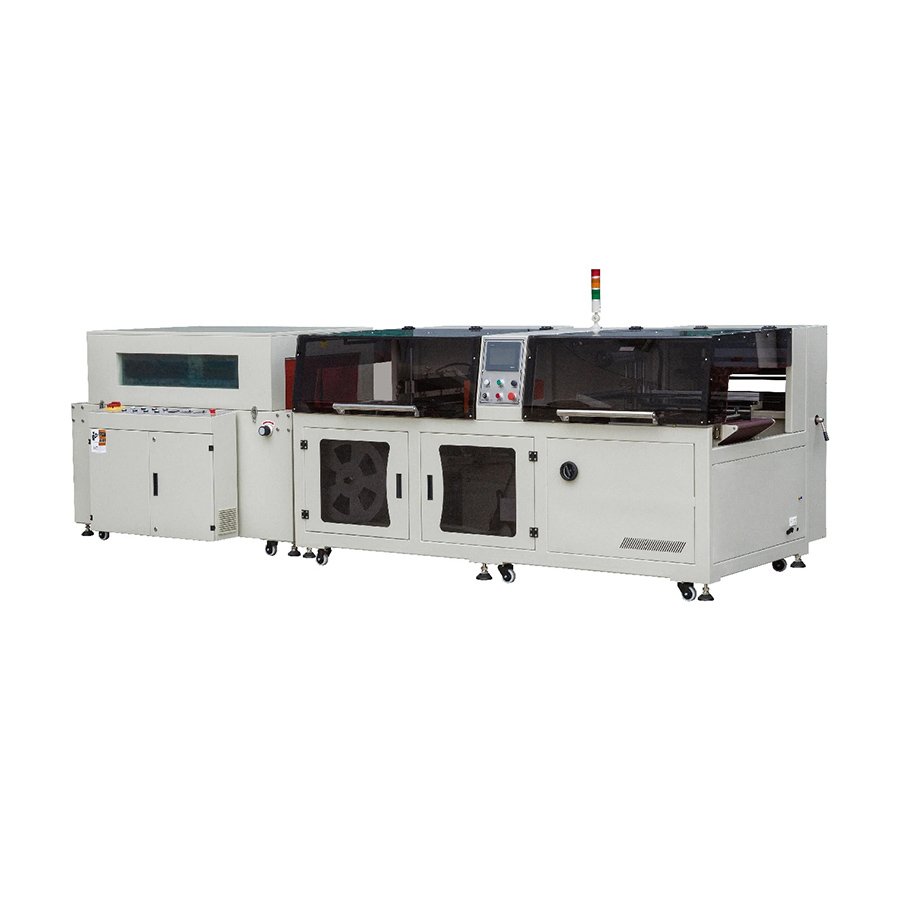

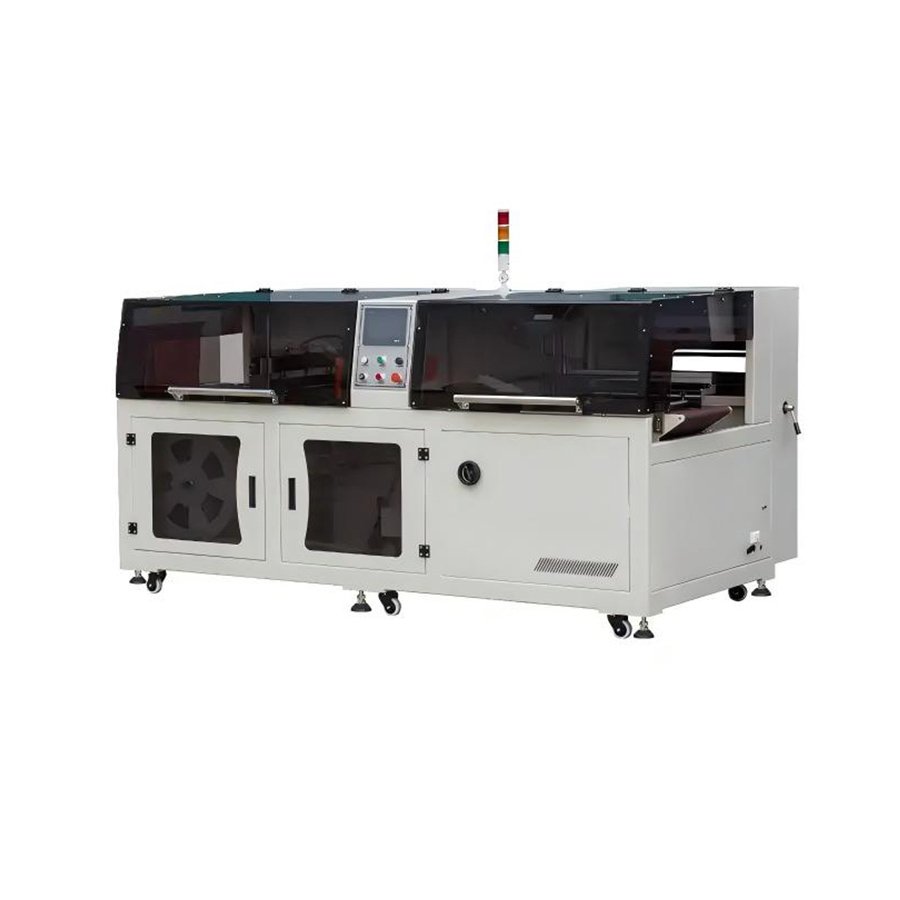

Automatic Continuous Heat Shrink Packaging Machine

This machine adopts advanced side sealing and reciprocating type horizontal sealing technology. Have continuous sealing actions. Servo control series could realize excellent shrink packaging in the condition of high efficiency. Servo motor controls the actions. During the high speed running procession the machine will act stable, reliable and make the products delivery smoothly during the continuous packaging to avoid the situation that products slide and displaced.

Application: suitable for big size packing, no limit for length, width can be 400mm.

Product parameter table

Model	BTH-450GS	BM-500L
Max. package size	(L+H)≤400 (W+H)≤400mm (H)≤150mm	(L)No limited×(W)450×(H)250mm
Max. sealing size	(L+H)≤400 (W+H)≤450mm	(L)1500×(W)500×(H)300mm
Packaging speed	40～70 packs/min	0-30m/min
Power supply	220V/50Hz 5kw	380V/50Hz 16kw
Maximum current	10A	32A
Operating Air Source	6kg/cm3	/
Machine weight	1200kg	470kg
Dimension	(L)2610×(W)1410×(H)1300mm	(L)1800×(W)1100×(H)1300mm
