Cross-linked POF (Polyolefin) shrink film is a high-performance, multilayer co-extruded heat shrink packaging material that undergoes a cross-linking process to significantly enhance its physical and mechanical properties. It combines exceptional clarity, strength, and sealing characteristics, making it ideal for high-speed packaging lines and demanding packaging applications.
Available thickness: 10um, 12um, 15um, 19um, 25um.
Film width: can be customized as per packaged goods specification.
● Cross-linking Technology: Enhances tensile strength, impact resistance, and heat tolerance; improves shrink consistency and overall durability.
● Superior Clarity and Gloss: Presents products in a clean and attractive manner, ideal for retail display.
● High Shrinkage Rate: Uniform and balanced shrink in both MD (machine direction) and TD (transverse direction), providing tight and wrinkle-free packaging.
● Strong Seal Integrity: Excellent hot slip and cold resistance, ensuring firm seals even under challenging conditions.
● Wide Shrink Temperature Range: Adapts to various shrink tunnels or heat guns (typically 120–180°C).
● Puncture & Tear Resistance: Ideal for packaging items with sharp edges or irregular shapes.
● Eco-Friendly & Food Safe: Non-toxic, recyclable, and compliant with FDA and EU food contact regulations.

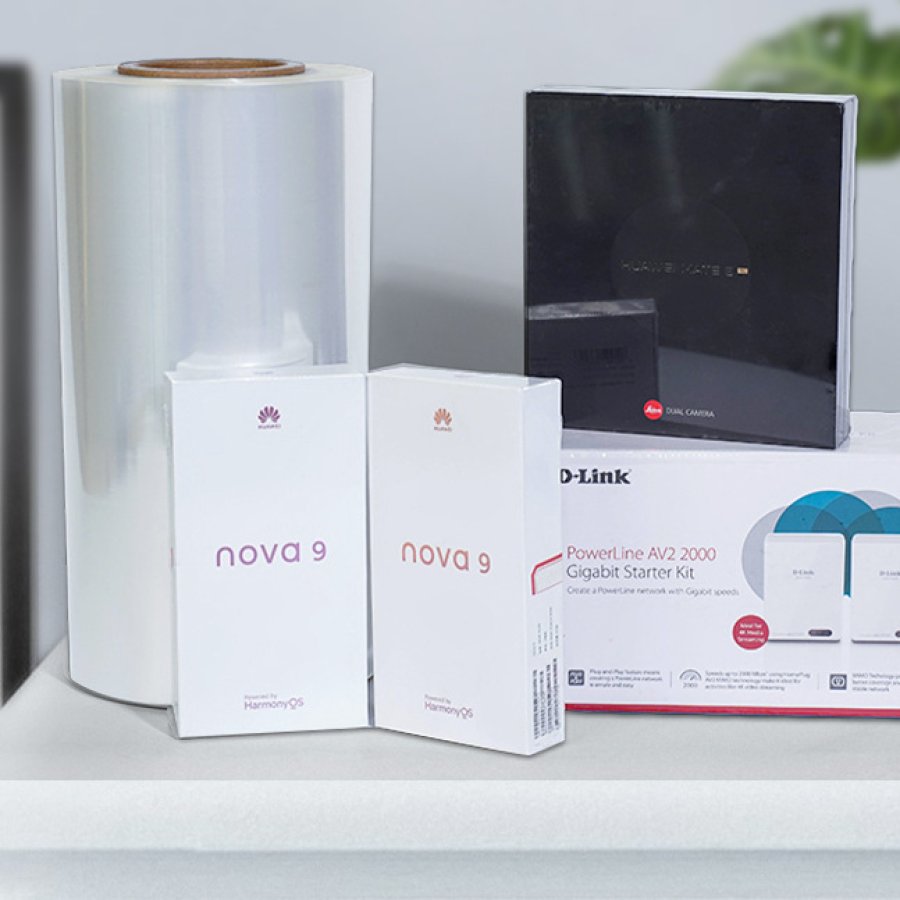

√ Retail Packaging: Toys, cosmetics, books, electronics, DVDs, promotional kits.
√ Food Packaging: Baked goods, snacks, frozen food, fruit trays (available in food-grade quality).
√ Industrial Packaging: Tools, automotive parts, electronics, household appliances.
√ Multi-pack Bundling: Bottled water, cans, cosmetics sets, and promotional combos.
Property | Cross-linked POF Film | Standard POF Film |
Tensile Strength | ★★★★★ | ★★★★☆ |
Puncture Resistance | ★★★★★ | ★★★★☆ |
Shrink Performance | ★★★★★ | ★★★★☆ |
Sealing Strength | ★★★★★ | ★★★★☆ |
Cost-efficiency | ★★★★☆ | ★★★★★ |
Test Item | Unit | ASTM Test | Typical Values | |||||
Thickness | 12um | 15um | 19um | 25um | 30um | |||
TENSILE | ||||||||
Tensile Strength（MD） | N/mm² | D882 | 130 | 135 | 135 | 135 | 135 | |
Tensile Strength (TD) | 125 | 125 | 125 | 130 | 130 | |||
Elongation（MD） | % | 125 | 130 | 130 | 140 | 140 | ||
Elongation（TD) | 120 | 125 | 120 | 130 | 135 | |||
TEAR | ||||||||
MD | g | D1922 | 10.0 | 14.5 | 17.5 | 25.5 | 33.5 | |
TD | 9.0 | 13.5 | 16.5 | 25.0 | 30.0 | |||
SEAL STRENGTH | ||||||||
MD/Hot Wire Seal | N/mm | F88 | 1.13 | 1.29 | 1.45 | 1.75 | 2.15 | |
TD/Hot wire Seal | 1.18 | 1.43 | 1.65 | 1.75 | 2.10 | |||
COF (FILM TO FILM) | ||||||||
Dynamic | D1894 | 0.23 | 0.20 | 0.22 | 0.25 | 0.25 | ||
Static | 0.25 | 0.21 | 0.23 | 0.27 | 0.25 | |||
OPTICS | ||||||||
Haze | D1003 | 2.3 | 2.6 | 3.5 | 3.8 | 4.2 | ||
Clanity | D1746 | 98.5 | 98.8 | 98.0 | 97.5 | 94.0 | ||
Gloss@45Deg | D2457 | 88.5 | 88.0 | 87.5 | 86.0 | 86.0 | ||
BARRIER | ||||||||
Oxygen Transmission Rate | cc/m²/day | D3985 | 10300 | 9500 | 6200 | 5400 | 4200 | |
Water Vapor Transmission Rate | gm/m²/day | F1249 | 34.5 | 29.5 | 21.5 | 15.5 | 11 | |
SHRINKAGE PROPERTIES | MD | TD | ||||||
Free Shrinkage | 100℃ | % | D2732 | 16 | 26 | |||
110℃ | 34 | 43 | ||||||
120℃ | 62 | 66 | ||||||
130℃ | 81 | 79 | ||||||
Shrink Tension | 100℃ | Mpa | D2838 | 2.10 | 2.55 | |||
110℃ | 2.70 | 3.85 | ||||||
120℃ | 2.95 | 4.25 | ||||||
130℃ | 2.80 | 4.00 | ||||||
