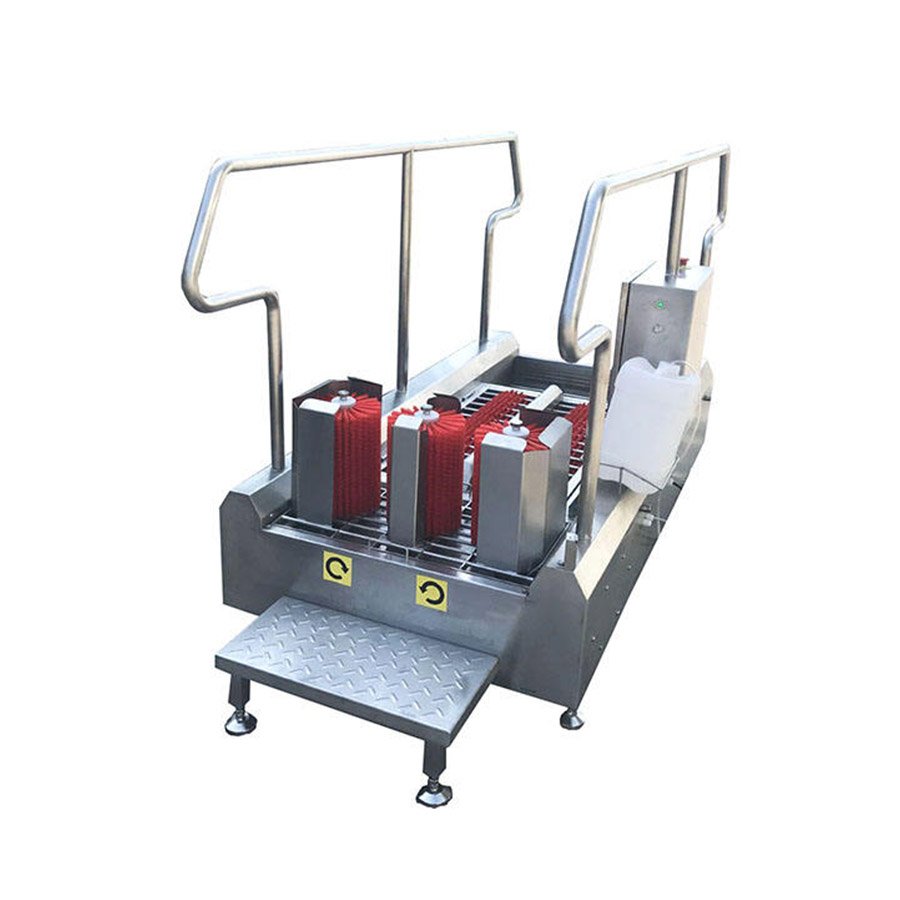

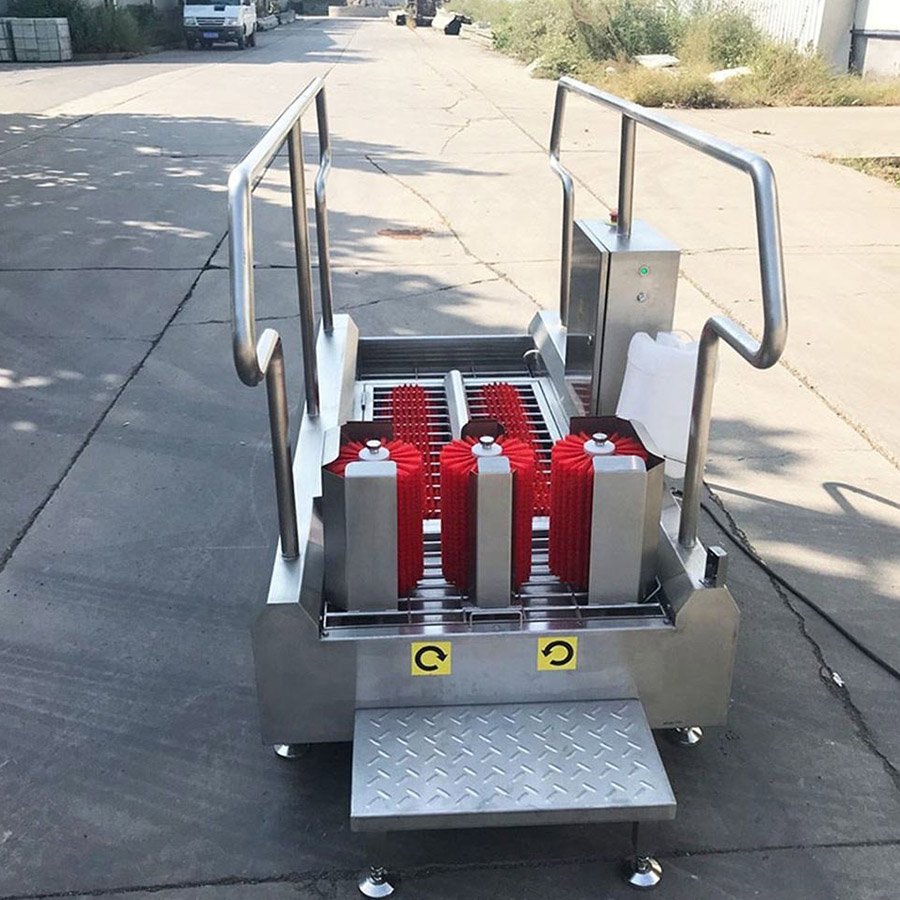

The channel type Boot Washing Machine is an industrial boot cleaning and disinfection system for slaughtering plant and food processing plant. It is mainly used in the food and meat processing industry to control personal hygiene safety, and provides the greatest safety guarantee for food safety management.
304 stainless steel material, the design integrates industrial and sanitary standards.
Combination of safety and comfort, easy to use and efficient.

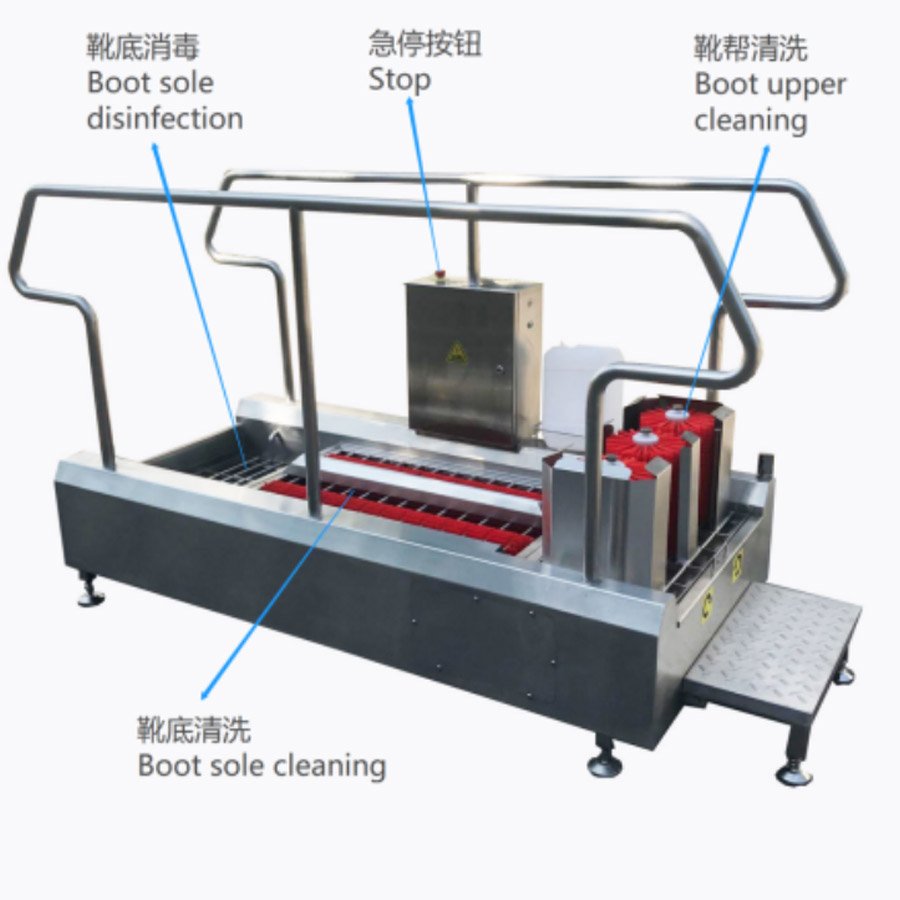

It integrates the washing of the sole and the upper of the boot.
Photoelectric induction start and stop automatically, the equipment will start automatically when the personnel pass, and stop automatically when no one passes 30 seconds after the personnel pass, so as to save electricity.
With an emergency stop button, to prevent the accident caused unnecessary damage to people and equipment.
The equipment can pass continuously, ensuring the passing efficiency.
The hair roller can be disassembled without tools, which is convenient for cleaning and maintenance.
Adjustable footings at the bottom to ensure the stable operation of the equipment.
With a liquid meter to detect the location of the disinfectant, text display to remind add liquid when the disinfectant is insufficient.
Model | 03B | 05A | 05B |
Function | Boots sole washing, Boots upper cleaning, Boots sole disinfection. | boots sole washing, hand washing, hand dryer, hand disinfectant, access control, Reverse through button. | Hand disinfection, Boots sole washing, Boots upper cleaning, Boots sole disinfection, Access control, Reverse through button. |
Material | 304SS frame + polyester fiber brush | 304SS frame + polyester fiber brush | 304SS frame + polyester fiber brush |
Power | 0.77KW | 2.72KW | 0.8KW |
Power supply | 380V, 50HZ, 3PH | 380V, 50HZ, 3PH | 380V, 50HZ, 3PH |
Dimensions | 2570*1000*1320mm | 2270*1160*1630mm | 2570*1080*1630mm |
